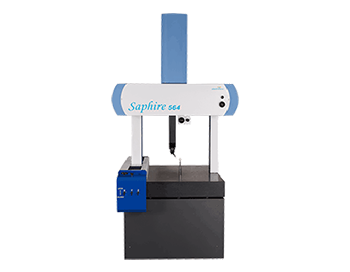

Saphire is an entry level, manually operated CMM which is economical, accurate and small in size.
Its mechanical construction is made of black Granite which gives good thermal stability and job carrying capacity of up to 350 Kg.
The machine has micromatic movement hand wheels for better speed control while probing giving good repeatability and accuracy. Each axis will have pneumatic locks for locking independent axis while probe movement helps the operator.
The Saphire CMM supports world class probing system from Renishaw making it the best option available in its segment.
| Specifications | Saphire 464 | Saphire 564 |
|---|---|---|
| Measuring Range - X Axis | 400 mm | 500 mm |
| Measuring Range - Y Axis | 600 mm | 600 mm |
| Measuring Range - Z Axis | 400 mm | 400 mm |
| Resolution | 0.0005 mm | |
|
Volumetric Accuracy MPEE (ISO 10360-02) |
3 +3.5L/1000µm L = Length in mm |
|
| Mechanical construction | Black granite for all three axes | |
| Maximum job carrying capacity | 350 Kg | |
| Air pressure & air consumption | 6 Bar and 100 L/min | |
| Probing System | Renishaw TP8* | |
| * Any other combination available | ||
