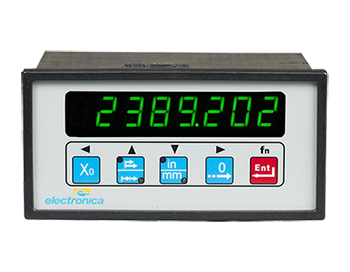

EL10 DRO is suitable for automation. It has DIN standard enclosure for panel mounting. It also has soft touch keyboard which provides ease of operation and long life of keyboard.
EL10 DRO is suitable for linear and rotary measurements. Optical and magnetic encoders are compatible with EL10 DRO.
EL10 DRO has Six Auxiliary opto-isolated outputs as standard feature which makes it convenient for use in automation.
| Feature | Details | ||
|---|---|---|---|
| No of Axes | 1 | ||
| Display | 0.56"LED 7 Segment | ||
| Case | DIN std. 72mm X 144mm | ||
| Power | 5V 2ADC via External Adapter (included) | ||
| Storage temperature | -200 C to 700 C /-4oF to +158oF | ||
| Operating temperature | 00 C to 500 C / 32oF to +122oF | ||
| Relative humidity | 20% to 85 % Non-condensing | ||
| Dimensions (HxWxD) | 72mm X 144mm X 110.5mm | ||
| Auxilliary Port | Standard | ||
| Max. Encoder current (mA) | 250mA | ||
| Encoder I/P type | Quadrature RS422 | ||
| Auxillary Outputs | Open Collector (max voltage -24V DC, max current -500mA) | ||
