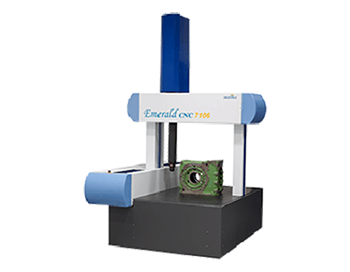

Emerald is specifically designed and built to perform precise measurement of heavy duty parts. Full granite construction with steel air bearings makes it ideal for measurement of auto components & heavy components with accuracy.
The Emerald machine supports job carrying capacity of up to 800 Kg.
Emerald CMM supports all types of probing systems from Renishaw including scanning probes and 5 axes motorized probes because of which wide measurement applications can be covered.
| Specifications | Emerald 7106 | Emerald 7127 | Emerald 9158 | Emerald 10209 |
|---|---|---|---|---|
| Measuring Range - X Axis | 700 mm | 700 mm | 900 mm | 1000 mm |
| Measuring Range - Y Axis | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
| Measuring Range - Z Axis | 600 mm | 700 mm | 800 mm | 900 mm |
| Resolution | 0.0005/ 0.0001 mm | |||
| Volumetric Accuracy MPEE (ISO 10360-02) |
2.5 + L/350µm L = Length in mm |
3 + L/350µm L = Length in mm |
||
| Mechanical Construction | Black Granite | |||
| Maximum job carrying capacity | 350 Kg* | 800 Kg* | ||
| Air pressure & air consumption | 6 Bar and 100 L/min | |||
| Probing System | Renishaw any combination | |||
| * Heigher weight carrying capacity on request | ||||
