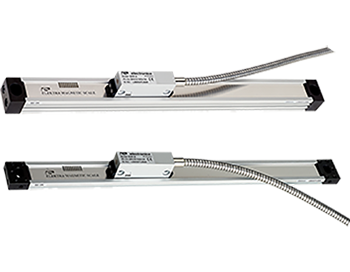

Magna S1 and S2 are open type contactless encoders specially designed for harshest enviroments of machine tool industry.
Robust with IP67 rating, optimized mounting dimension for compact spaces, these encoders are preferred choices for standard milling machines, lathe machines, grinders and HBM.
Starting from 100mm length, these encoders go upto 30mtr and beyond. Above 3 meter length, these encoders come in jointed extrusions with guided reader head.
| MAGNA Magnetic Measuring System | |
|---|---|
| Repeat accuracy | ±1 count |
| Measuring lengths | 100mm to 30,000mm (30mtr)Longer lengths available on request |
| Cureent consumption | Typ.50mA (100mA max) |
| Power supply | + 5VDC (±5%) |
| Output signal | 1. Differential Line driver as per EIA RS422 standards |
| Reference mark | Std Every 50mm, custom reference marks available on requst |
| Operating temperature | 0oC to 50oC |
| Storage temperature | -20oC to 70oC |
| Relative humidity | 20% to 80% Non-condensing |
| Standard cable length | 3/5 meters armoured cable depending on length |
| Max cable length | 20 meters |
