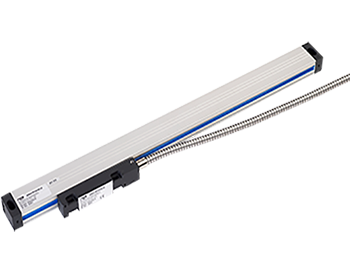

The MG232 Enclosed high speed linear encoders offer ease of installation and unsurpassed robustness to oil, dust and coolants as it comprises of IP 67 protection class. Ideally suited for shop floor and dirty environment they can be used as a direct alternative to linear optical encoders.
It provides user the benefits of both, ease of mounting of optical encoder with the robustness of magnetic measuring system, also provide measuring from 150 length up to 3040 mm. Available in 1µm and 5µm resolutions for Machine tool application, available in 0.5µm and 0.1µm resolutions for Profile Projector application.
| Feature | Details |
|---|---|
| Resolution | 0.1 / 0.5 / 1 / 5 µm |
| Pole Pitch | 2mm |
| Accuracy Class | ± 10 µm per meter |
| Measuring Lengths (mm) |
120, 170, 220, 270, 320, 370, 420, 470, 520, 620 720, 770, 820, 920, 1020, 1120, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 1940, 2040..upto 3040mm |
| Current Consumption | Typ. 50mA, (100mA max) |
| Power Supply | + 5 VDC (± 5%) |
| Output Signal | RS422 |
| Reference Mark | At 30mm from start then after every 50mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 20% to 80% Non-condensing |
| Standard Cable Length | 3 meter up to 820mm armoured type 5 meter above 820mm armoured type |
| Max. Cable Length | 20 meters |
| Measurement Speed |
2 Mhz (10m/s at 5µm res., 2m/s at 1µm res. 1m/s at 0.5µm and 0.1µm resolution) |
| Protection Class | IP67 |
