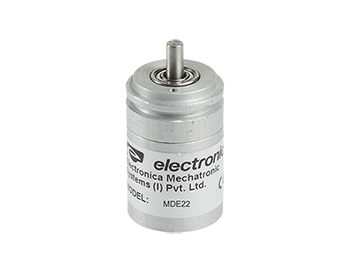

MDE22 is a magnetic rotary enclosed encoder with a shaft. It has a precision sensor having an integrated Hall element for scanning a permanent Dipole magnet. The encoder can give Absolute as well as incremental outputs up to 14 bits per rotation.
MDE22 enclosure is designed like an enclosed shaft encoders allowing for very easy installation in applications. Its IP68 robust design makes it ideal for use in harsh environments.
| Specifications | Details |
|---|---|
| Power Supply | +5V DC (±5%) |
| Current consumption | 50mA to 90mA |
| Output | Depends on the model (See datasheet) |
| Maximum RPM | 20000 RPM |
| Operating Temperature | -40oC to +125oC |
| Storage Temperature | -40oC to +125oC |
| Protection class | IP53, IP64,IP68 (IEC 60529) |
| EMI /EMC compliance | EN61326 |
