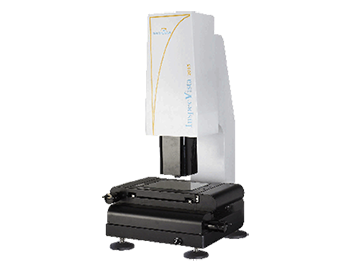

The high performance Inspec Vista vision measuring machines come in four variants. The manual with auto focus, motorized and full CNC range is available in four different sizes. The manual version comes in a high capacity model of auto focus where the camera mounted axis is motorized for precise focus eliminating the user's skills and experience.
The motorized model is useful in cases where the machine is used with Touch Trigger Probe (TTP). The motorized probing is more advantageous in getting better repeat accuracies of a Touch Trigger Probe (TTP).
The full CNC model is specially made for faster inspection and is also highly useful in machines which use the optional digital probe for depth measurements and the touch trigger probes.
Our own software has everything that one looks in for user friendly software in measurement technology. Full geometric functionality is included with features like point, line, circle, curve, arc etc. The edge detection is automatic and SPC and analytic software are included. The DXF import / export are also included in the standard software. The software has the capability to control the intensity and quadrant selection for ring light and intensity of backlight.
| Specifications | 1510 | 2015 | 3020 | 4030 |
|---|---|---|---|---|
| Measuring Range - X axis | 150 mm | 200 mm | 300 mm | 400 mm |
| Measuring Range - Y axis | 100 mm | 150 mm | 200 mm | 300 mm |
| Measuring Range - Z axis | 100 mm | 150 mm | 200 mm | 300 mm |
| Variants | Z axis / motorized / CNC |
Manual with Z axis auto focus Z axis / motorized / CNC | ||
| Machine Construction | 'C' Frame contruction | |||
| Machine Base | Aluminium alloy casting | Granite | ||
| Video System |
1/3” High resolution colour CCD camera (standard) with 800 X 600 pixels 1/2” High resolution colour CMOS camera (optional) with 2048 X 1536 pixels |
|||
| Image Optics |
Standard Zoom lens 1:6X Magnification* Motorized zoom lens* Co-axial zoom lens with 1:8.3X Magnification* |
|||
| Probing Option | Electronic Depth Probe (EDP) for depth mesurement available as option Renishaw make touch trigger probe for 3D mesurment. | |||
| Probe Rack Facility | Not Available | Available with Renishaw probing | ||
| Lighting System |
2 Rings, 4 Quad, 48 LED white ring light with Single LED green back light as standard 4 Rings, 4 Quad, 64 LED white ring light with an array of Single LED green back light available as standard |
|||
| Scale Resolution | 0.5 μm, scale resolution (standard) , 0.1 μm available as option | |||
| Accuracy | 3 + L / 175μm, L is measuring length in mm | |||
| Max. Work piece weight | 25 kg | |||
| Power requirement | 95 - 265 VAC 50/60 Hz | |||
