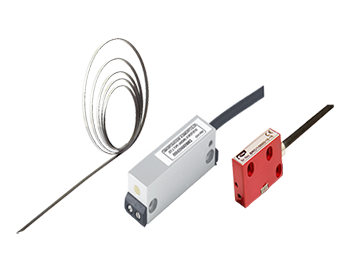

The Magnetic Reader head and Tape forms a contactless high-Speed Measurement system. It is simple to install and highly resistant to oil, dust, dirt & vibrations, making it an ideal system to be used under harshest conditions making it most suitable for applications like Machine tool, Automation etc.
Maintaining IP 67 Protection class this product also provide the accuracy from ±10, ±20, ±50, ±100 and more, with resolution 0.5µ, 1µm, 2µm, 5µm, 10µm, 20µm, 50µm &100µm.
Available with customized length & higher accuracy on request, Magnetic Tape & Reader head is a perfect solution for shop floor machine and many automation application needs.
| Feature | Details | ||
|---|---|---|---|
| EMR Series | EMC Series | ||
| Pole Pitch (mm) | 1, 2, 2.5, 5 | 2, 5 | |
| Resolutions (µm) | 0.1, 0.5, 1, 5, 10, 20, 50, 100 | 1, 5, 10, 20, 50, 100 | |
| Mechanical Dimensions
(L X W X H in mm) |
60 X 16 X 22 | 35 X 10 X 25 | |
| Repeat Accuracy (count) | ±1 count | ||
| Operating voltage | 5V DC (±0.25V DC) | Option 1: 5V DC (±0.25V DC) Option 2: 6.5V DC to 30V DC |
|
| Current consumption | <50mA | <50mA | |
| Output Signals | Quadrature RS422 | Quadrature RS422 | |
| Reference Output | Available | ||
| Measurement speed | 4MHz (240 meter / min @ 1 micron resolution) | ||
| Standard cable length | 3 meters | ||
| Maximun cable length | 20 meters | ||
| Dimensions (LXWXH) : | 60mm X 16mm X 22mm | 35mm X 10mm X 25mm | |
| Cable type | Option 1: Armoured cable Option 2: PUR cable suitable for drag chain applications |
PUR cable suitable for drag chain applications | |
| Operating and storage Temperature | -20ºC to +85ºC | ||
| Humidity | 20% to 80% non-condensing | ||
| Ingress Protection class | IP67 | ||
