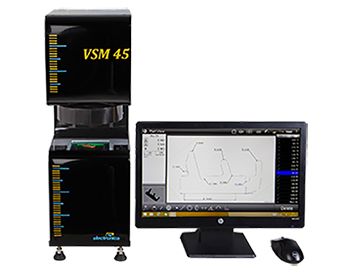

The VSM families of Vision measuring machines are designed to measure small, complex parts with a single camera image. VSM machine uses a High resolution Video Camera with Telecentric Optics and Lighting. The machines are offered with world class Metlogix M3 software with unique advantages.
| VSM 45 | VSM 75 | VSM 100 | |
|---|---|---|---|
| Field of view | 36 X 26 mm | 61 X 45 mm | 96 X 71 mm |
| Diagonal of FOV | 45 mm | 75 mm | 100 mm |
|
Volumetric Accuracy E2 (where L is in mm) |
4 + L/50 μm | 4.5 + L/50 μm | 7.5 + L/50 μm |
| Optics | Telecentric Lens | ||
| Camera System | 5 Mega Pixel USB Camera | ||
| Ring Light | LED Ring light 4 sector programmable | ||
| Back Light | LED Telecentric back light programmable | ||
| Maximum object height | 22 mm | 30 mm | 30 mm |
| Rated Temperature | 20ºC ± 2ºC | ||
| Safe operating | 15ºC to 30ºC | ||
| Power | USB Powered through PC | ||
| Stage load capacity | 20 kg | ||
