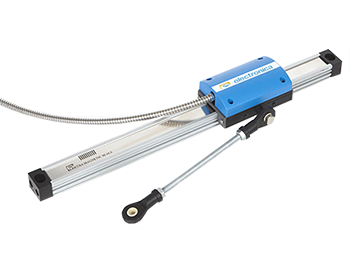

The Press Brake Scale by Electronica Mechatronic Systems is fully guided environmentally sealed scale with high mounting tolerance. The high performance encoder system provides resolution from 1 - 10 µm and accuracy up to ±10 µm/m.
The robustly design scale provides protection class of IP67 and is resistant to coolants and general chemicals found in industries. It can operate at 0° C to 50° C and can be stored from -20° C to 70° C and can operate up to speed of 60 m /min.
| Feature | Details |
|---|---|
| Resolution | 0.1 / 0.5 / 1 / 5 µm |
| Pole Pitch | 2mm |
| Accuracy Class | ± 10 µm per meter |
| Measuring Lengths (mm) |
120, 170, 220, 270, 320, 370, 420, 470, 520, 620 720, 770, 820, 920, 1020, 1120, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 1940, 2040..upto 3040mm |
| Current Consumption | Typ. 50mA, (100mA max) |
| Power Supply | + 5 VDC (± 5%) |
| Output Signal | RS422 |
| Reference Mark | At 30mm from start then after every 50mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 20% to 80% Non-condensing |
| Standard Cable Length | 3 meter up to 820mm armoured type 5 meter above 820mm armoured type |
| Max. Cable Length | 20 meters |
| Measurement Speed |
2 Mhz (10m/s at 5µm res., 2m/s at 1µm res. 1m/s at 0.5µm and 0.1µm resolution) |
| Protection Class | IP67 |
